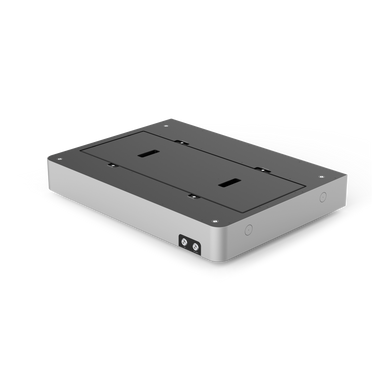

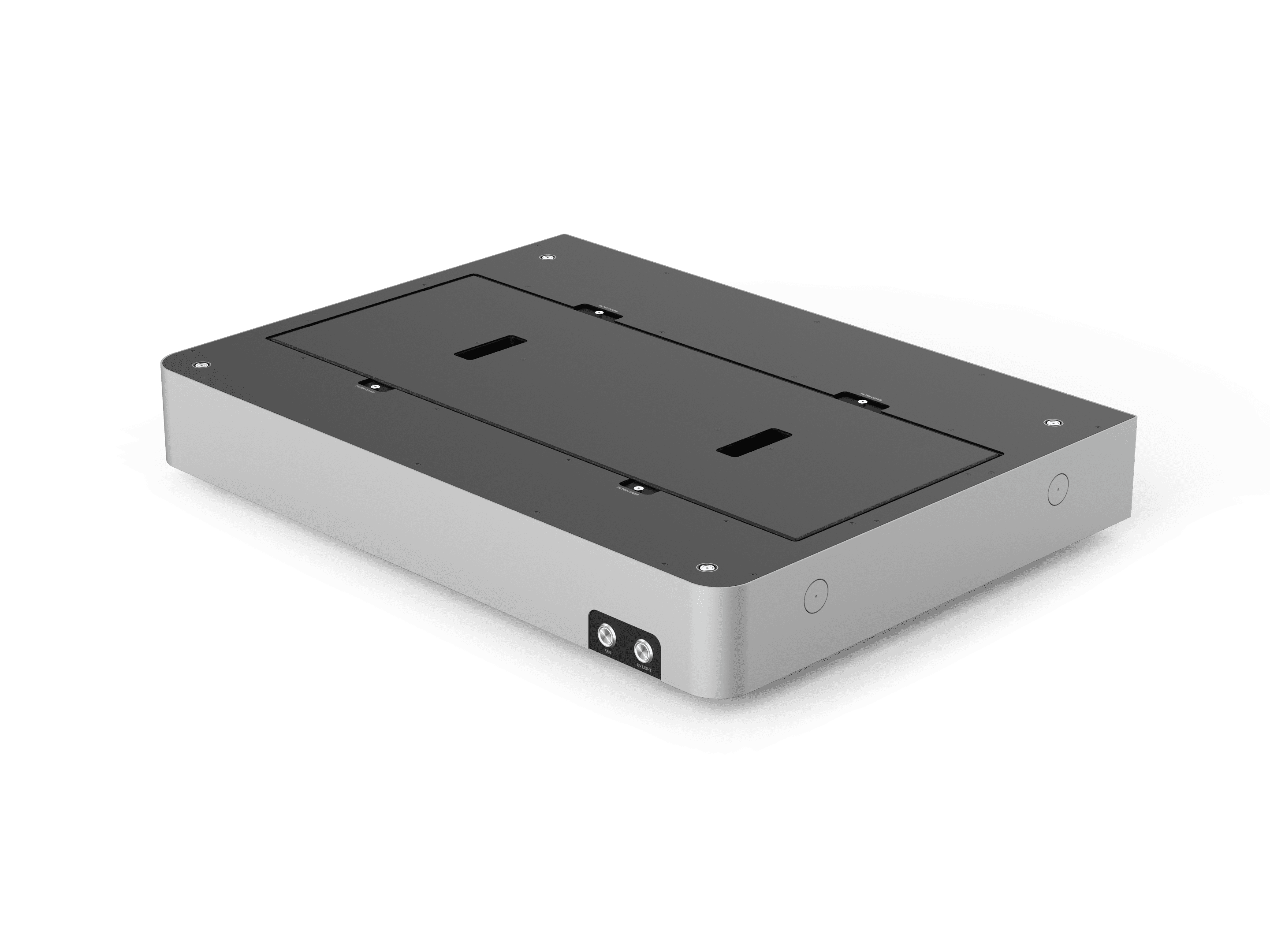

Opentrons Flex HEPA/UV Module

The Opentrons Flex HEPA/UV Module enables you to run sensitive contamination-prone applications. It removes 99.99% of 0.3 μm DNA-containing particulates and biological contaminants like bacteria, fungi, and other microorganisms from the air, creating a clean work environment inside the Opentrons Flex.

Prices listed here are valid in the US and select other territories. Please get in touch with your local team for pricing for your territory.



1-Year Warranty

Ships in 12 weeks

Create a quote after you add to cart
Create a quote after you add to cart


Filter Contaminants

Filters 99.99% of biological contaminants 0.3μm small

UV-C Module

Integrated UV-C module for deck sterilization

Get Started Quickly

Simple, modular installation

Tech Specs


87cm x 64cm x 14cm (l/w/h)


42 lbs. / 20kg


100 – 240 VAC

Noise Level

70 decibels

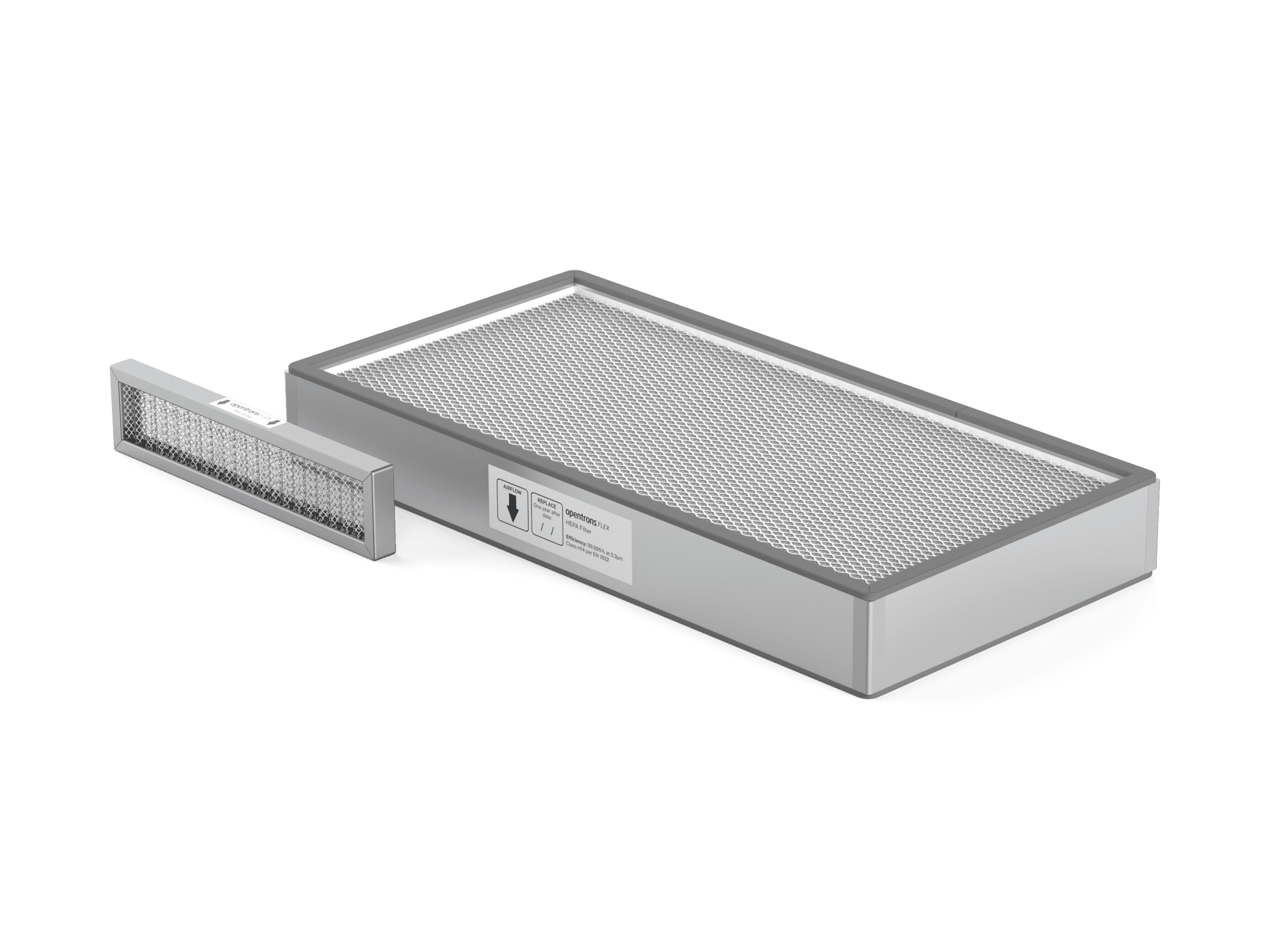

Filter Lifetime

3 years of moderate use (~6,000 hours)

Power Supply (AC)

Input: 2.2 A at 115 VAC, 1.1 A at 230 VAC

Output: 24 VDC, 8.4 A, 201 W max

Power Consumption

75.5 watts – 160 watts

Operating Space

20 cm / 8” (minimum) of side and top clearance



The Opentrons Flex HEPA/UV Module is not a biosafety cabinet, nor does it protect the user. The module is used to maintain a sterile working environment inside the Flex.

The HEPA/UV Module should never be used for pathogens. It should not be used for situations where there are volatiles, or any potentially hazardous aerosolized materials.

The Opentrons Flex HEPA/UV Module is intended for use with our Opentrons Flex Robot, and can not be used as a standalone unit.
